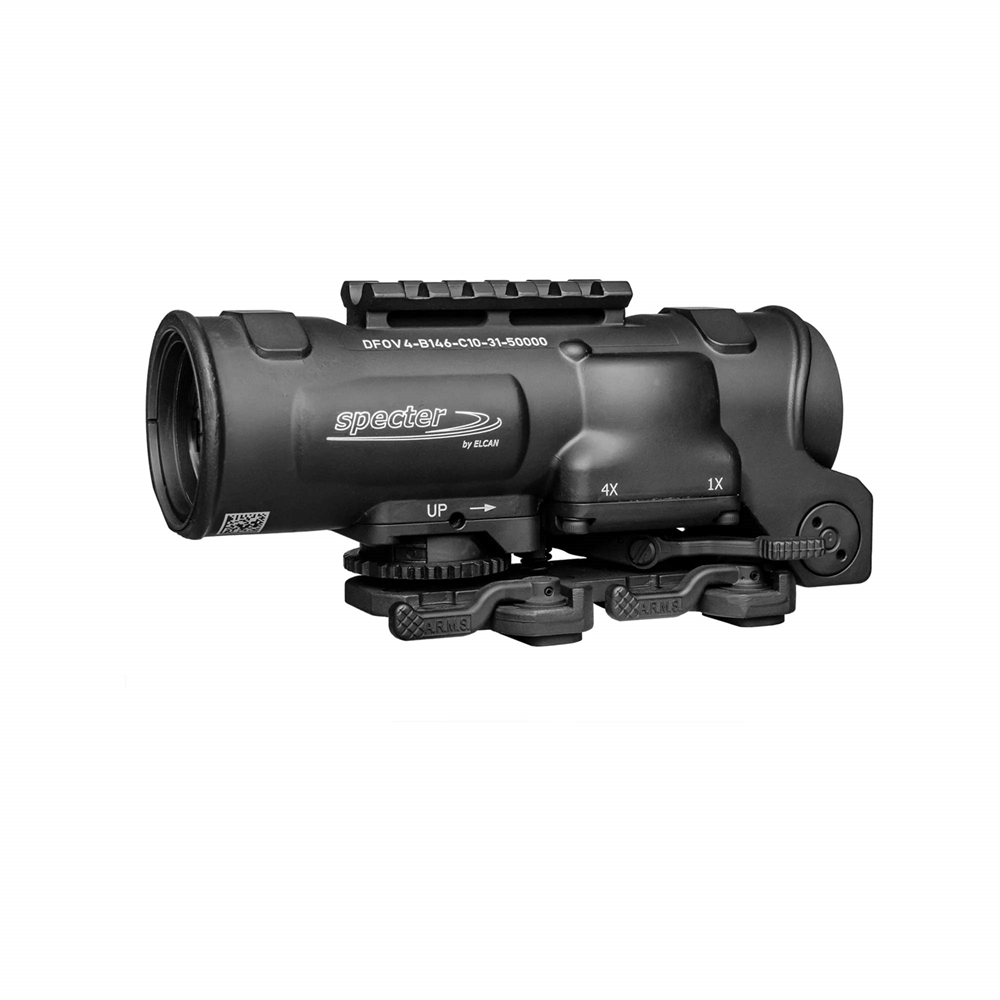

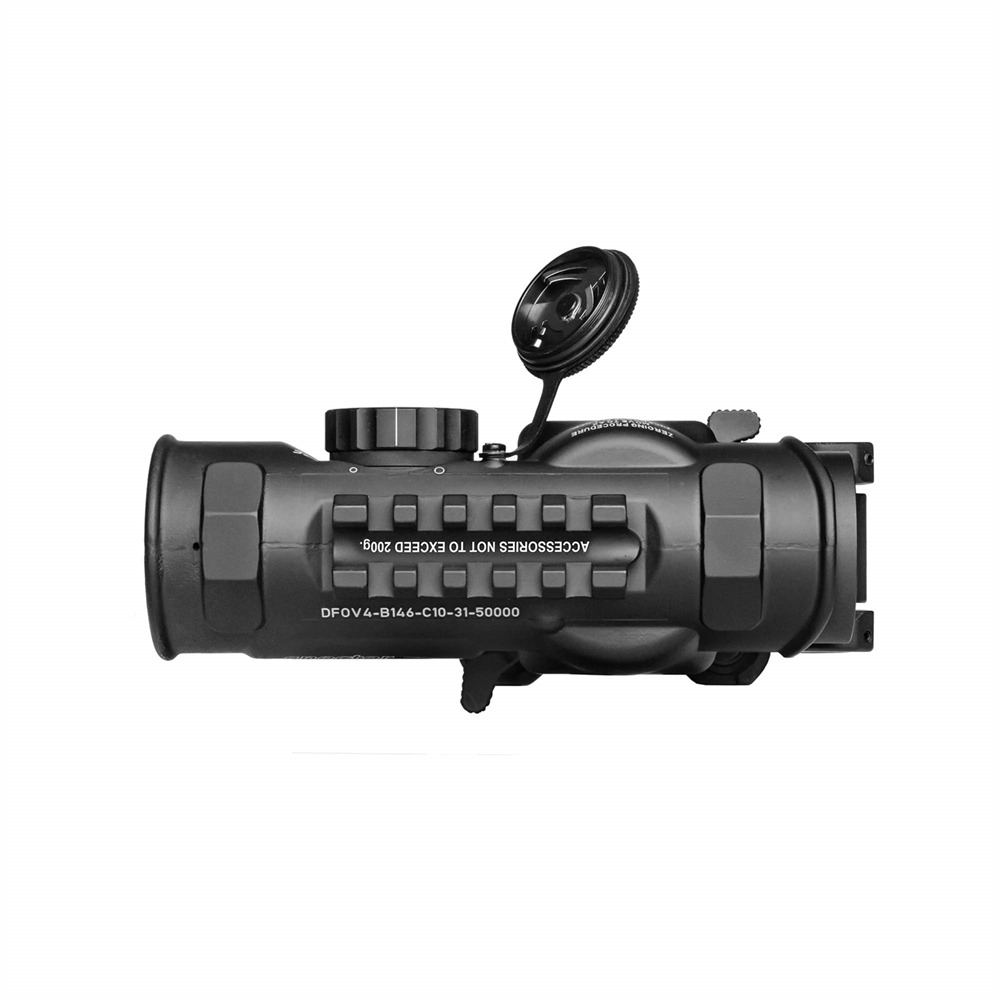

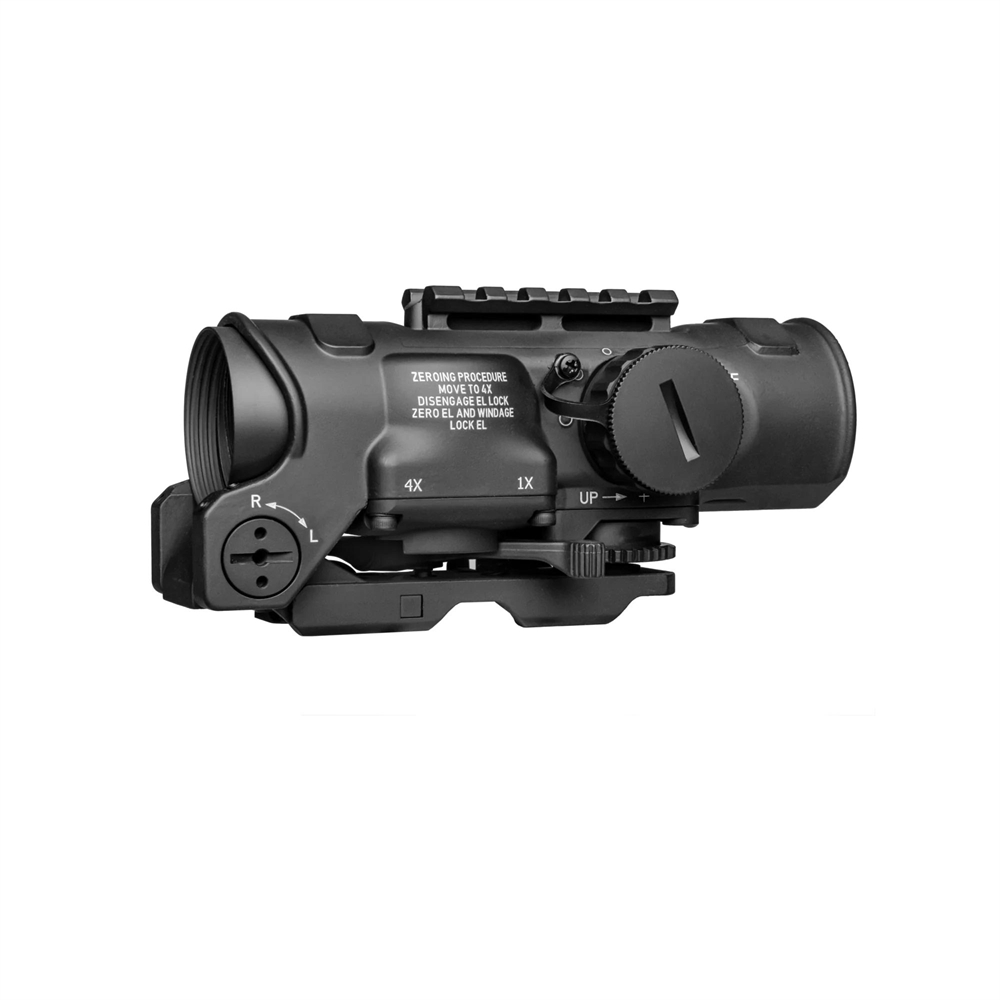

Introduced in 2024, the ELCAN SpecterDR 1x/4x now comes equipped with integrated Picatinny rails, ambidextrous magnification throw levers, improved battery covers, and hard-wearing CERAKOTE® performance finishe in Black

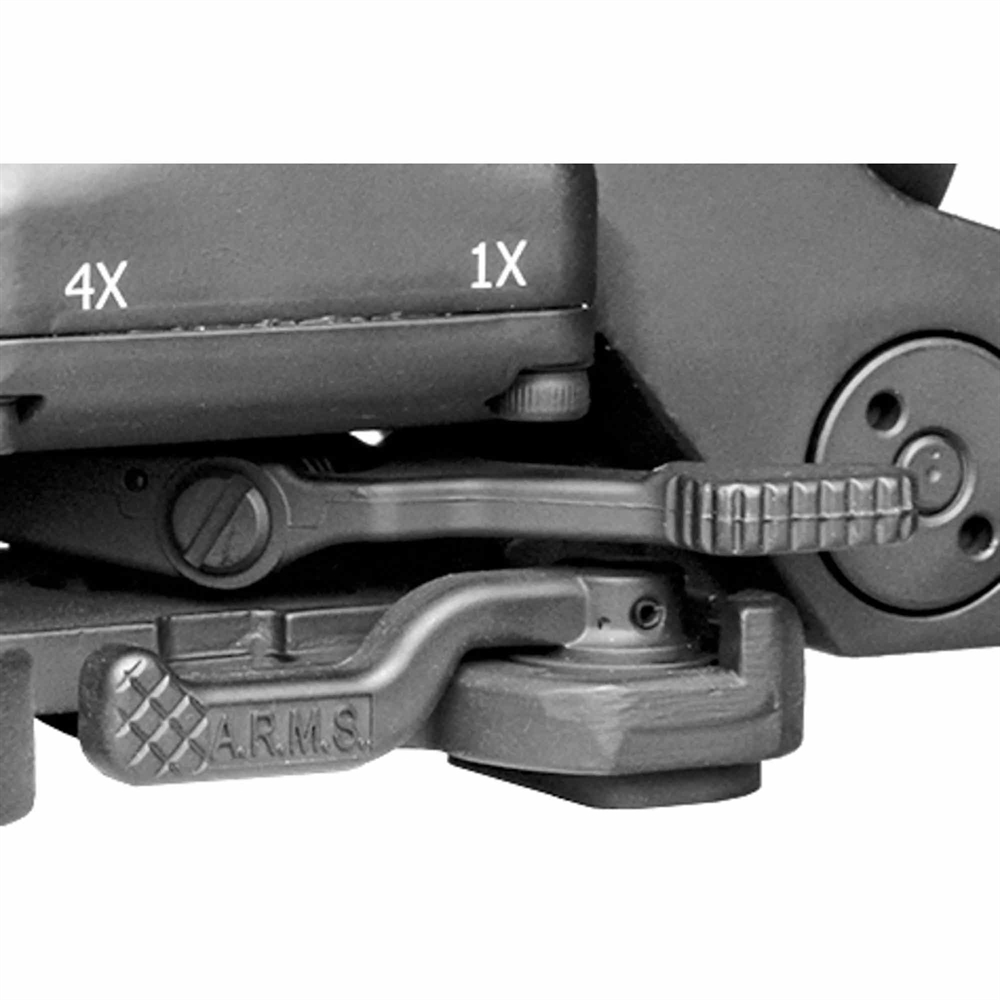

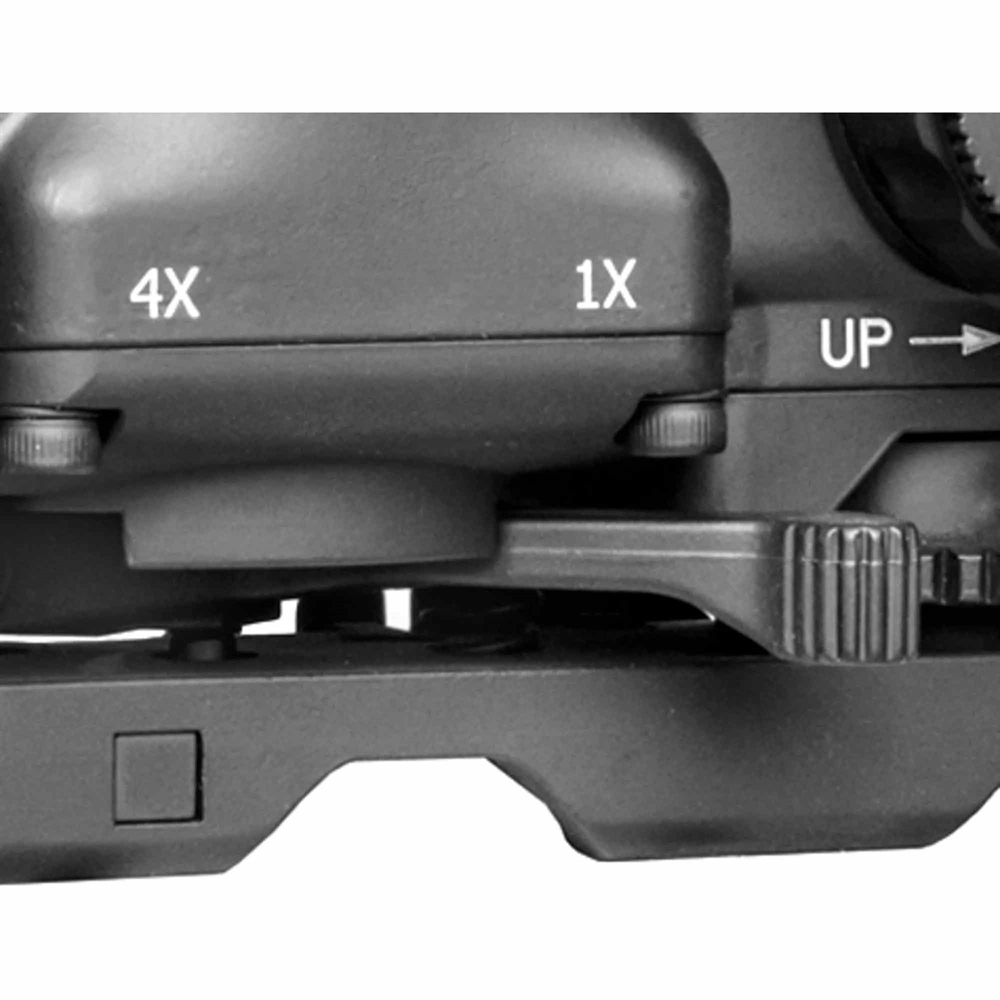

The SpecterDR 1x/4x Dual Role Optical Sight represents a revolution in optical sight design. The world’s first truly dual field of view combat optical sight, the SpecterDR switches instantly from a 4x magnified sight to a 1x CQB sight with the throw of a lever. Unlike zoom sights, the SpecterDR offers an optimized optical path and identical eye relief in both 4x and 1x modes.
Depending upon the situation, the user may adjust the sight to illuminate the crosshair or just a brilliant red dot in the center. In 1x mode, the SpecterDR has by far the largest field of view in the industry. In 4x mode the SpecterDR offers a generous field of view, long eye relief, and ELCAN’S legendary crystal clear image.
The SpecterDR 1x/4x offers the best single solution for both Medium Range and CQB engagements and is designed to withstand the rigors of modern professional use.
Specifications
| Magnification |
4x / 1x |
| Length |
153mm nominal |
| Width |
68mm nominal |
| Height |
72mm nominal |
| Weight |
655g nominal |
| Reticle |
Dual-thickness ballistic crosshair with user-selectable red dot, VSOR rangefinder, and area fire circles. |
| Aiming Dot diameter |
1.5 MoA @ 4x, 6 MoA @ 1x |
| Ballistic correction: |
Dual-thickness ballistic crosshair with user-selectable red dot, VSOR rangefinder, and area fire circles. |
| DFOV14-C1: |
CX5395 reticle: 100-600m for 5.56 carbine,700-1000m for 5.56mm LMG |
| CQB offset |
<44mm @ 60m |
| Field of View |
26 deg @ 1x, 6.5 deg @ 4x |
| FoV @4x |
11.4 m @ 100 m (34.2 ft @ 100 yds) |
| FoV @1x |
48.8 m @ 100 m (146.3 ft @ 100 yds) |
| Illumination source |
Battery-powered LED |
| Crosshair illumination |
5 settings, AN/PVS-22 compatible |
| Red Dot illumination |
5 settings, AN/PVS-22 compatible |
| Eye Relief |
70mm |
| Entrance pupil |
32mm |
| Exit pupil |
8mm |
| Nominal focus |
150m @ 4x, 70m @ 1x |
| Fixed focus range |
20m to infinity |
| Battery type |
CR2032 (3v Lithium) |
| Battery life |
382hrs on max RD/reticle setting, 1730hrs on second highest RD setting, 1208 hrs on second highest reticle setting |
| Exterior finish |
CERAKOTE® performance finish in Black or Flat Dark Earth (FDE) |
| Adjustment resolution |
0.5 minute of angle |
| Adjustment range |
120 minutes of angle |
| Base requirement |
Mil-Std-1913 ‘Picatinny Rail’ |
| Attachment |
A.R.M.S. Levers |
| Shockproof: |
450 g’s |
