Thermal Excellence and built-in laser rangefinder

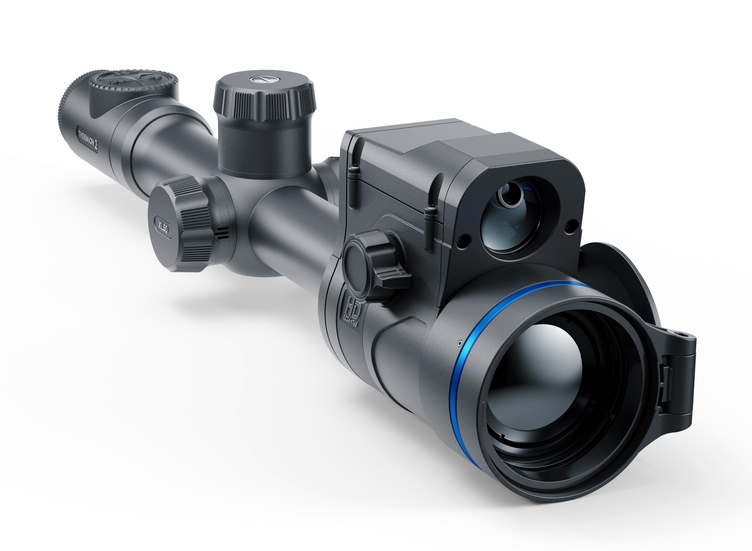

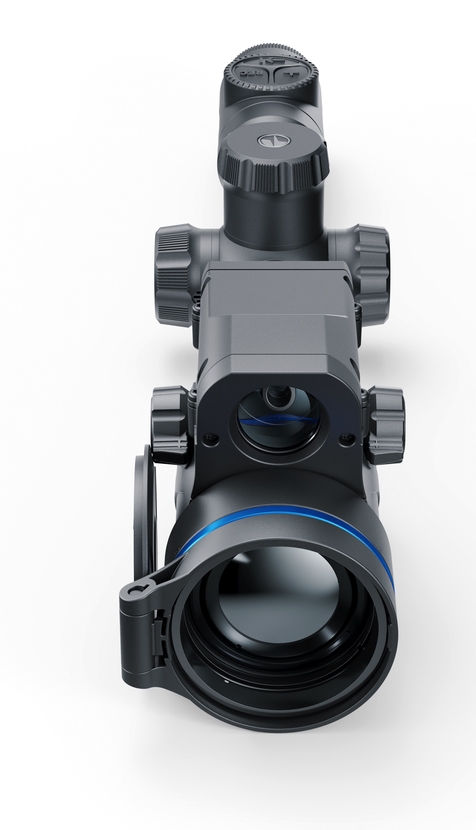

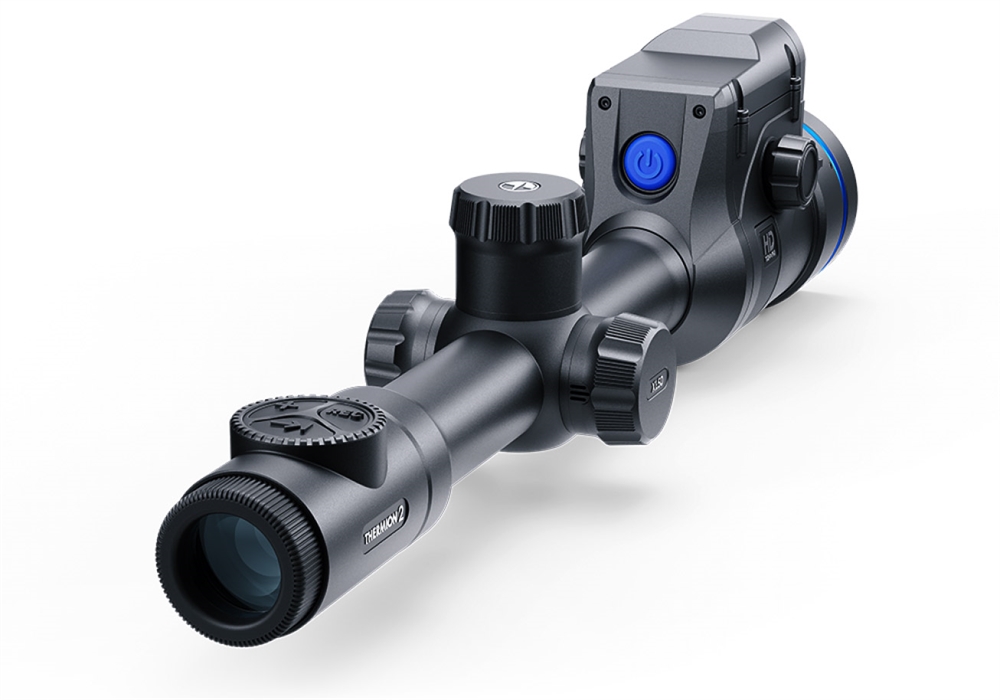

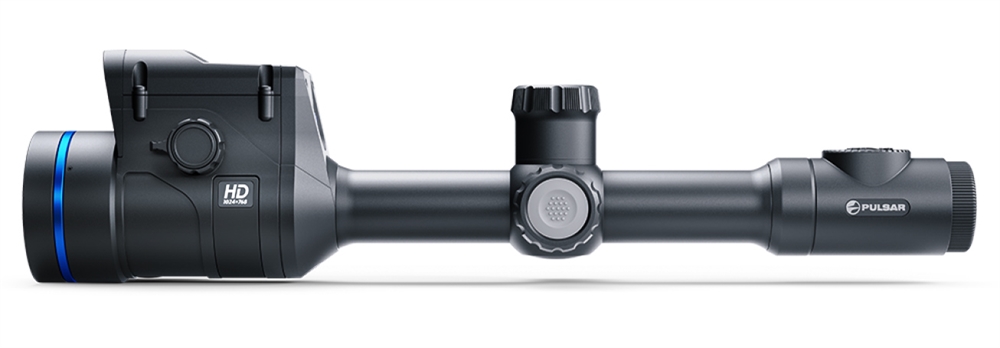

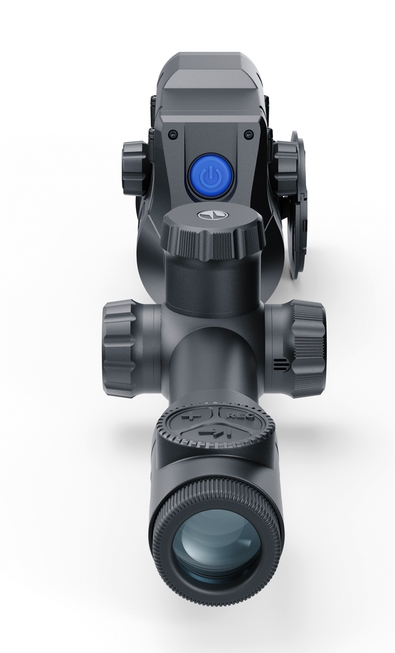

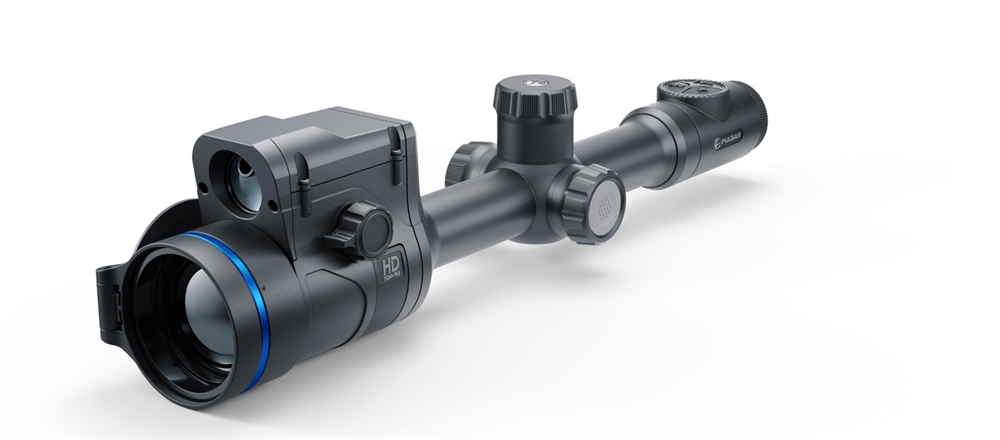

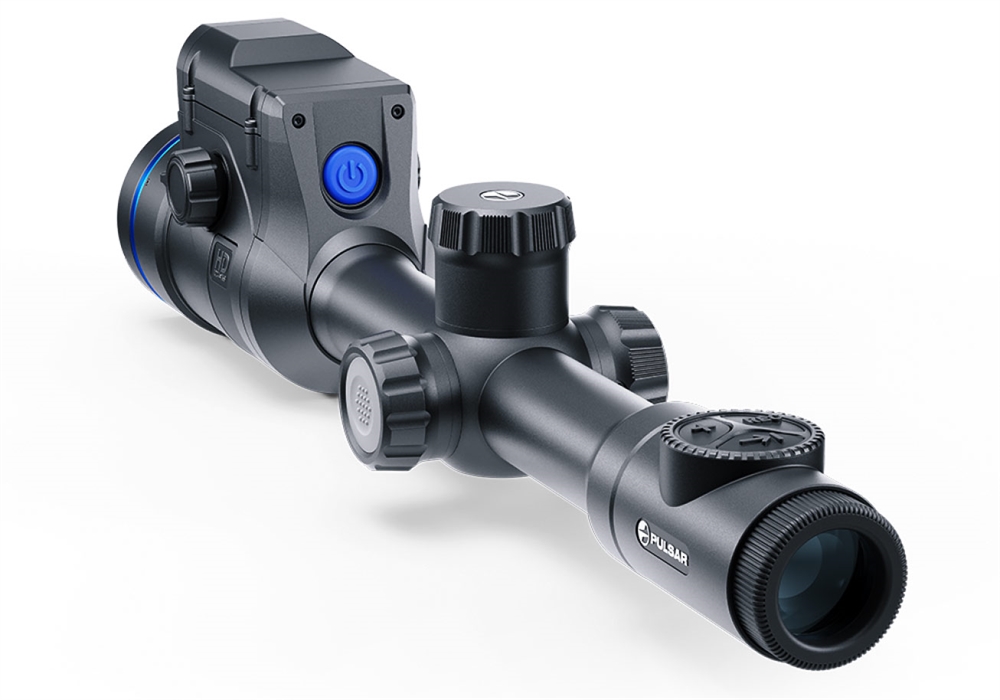

Thermion 2 LRF XL50
Key differences from the Pulsar THERMION 2 LRF XP50 PRO
- Bigger sensor
- HD 1024x768 @ 12 µm (NETD <35 mK) vs (640x480 @ 17 µm (NETD <25 mK))
- Greater field of view
- 14x10.5 / 24.6x18.5 vs (12.4x9.3 / 21.8x16.3)
- Greater detection range
- 2300m vs (1800m)
- Greater Field of view
- 14x10.5 / 24.6x18.4 vs (12.4x9.3 / 21.8x16.3)
- Bluetooth control
- Greater Built in Memory
- 64GB vs (16GB)
Specifications of the Pulsar Thermion 2 LRF XL50
- Sensor : HD 1024x768 @ 12 µm (NETD <35 mK) 50Hz
- Objective lens : F50 / 1.0
- Detection range, m : 2300
- Max. measuring range, m : 800
- Eye relief, mm : 50
- Display : AMOLED HD 1024x768
- Built-in memory, GB : 64
- Max. recoil power on rifled weapon (Eo), Joules : 6000
Features
Ballistic calculations inside the riflescope
The ballistic calculations for the Thermion 2 LRF are enabled via the new Stream Vision Ballistics mobile application paired with the recent firmware update.
Variable magnification
The base magnification of Thermion 2 LRF riflescopes increases by 4x to 8x depending on model. The zoom changes either gradually by 2x steps or continuously to set the ideal ratio of magnification and visible field of view for specific situations.
A selection of 10 reticle shapes in 9 color modes
A reticle is electronically displayed in the same plane as the target. The Thermion 2 LRF memory contains ten reticle configurations and functions (direct shot type, ballistic, scalable and regular), all available in nine colors.
10 individual shooting profiles / 100 zeroing distances
Zeroing settings are saved in a shooting profile. The Thermion 2 LRF memory contains up to 10 shooting profiles for several types of weapons or cartridges. Each profile can hold up to ten zeroing distances.
High-precision ambidextrous lens focusing
Objective lens with internal focusing mechanism gives a clear and sharp image at any range. Ergonomic focusing wheels are located on the right and left sides, making focusing easy either left- or right-handed.
Extreme image detail on high zoom
Variable 1.75-14x magnification (x8 digital zoom) provides improved focus and better overall object recognition at significant distances. The HD-sensor allows to maintain a high level of image detail across the whole magnification range. The zoom changes either gradually in 2x step or continuously for a customized FOV / magnification ratio for each specific situation.
High-precision aiming in the "Picture-in-picture" mode
The “Picture-in-picture” function enables the shooter to display a high-precision zeroing frame. Taking only 10% of the total display area, the frame shows a magnified image of the target and reticle and allows the user to closely see the image in the aiming area and have visual control of the entire field of view at the same time.
Mounting on standard 30 mm rings
The Thermion 2 LRF offers visual aesthetics on any hunting weapon. From the outside the riflescope resembles a classic day sight in a 30mm housing. This form factor provides flexibility for mounting the scope on hunting weapons using proven ring solutions.
High caliber recoil resistance: 12 gauge, 9.3x64, .375H&H
Thermion 2 LRF thermal riflescopes are high impact resistant and can be used with rifled hunting weapons with calibers of 9.3x64, .30-06, .300, .375H&H, etc., as well as with smooth-bore and pneumatic weapons.

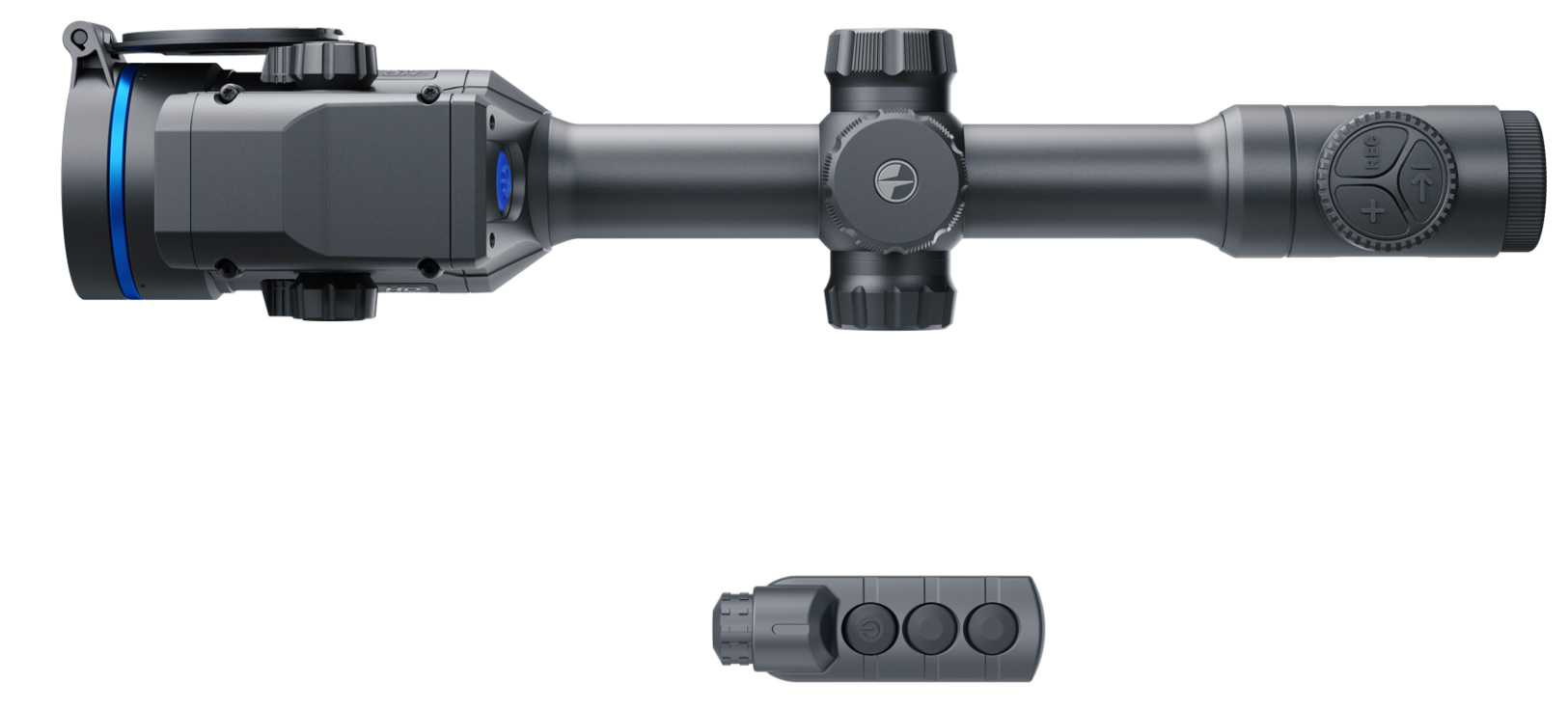

Wireless remote control included
The Pulsar BT wireless Bluetooth remote control completely duplicates the regular buttons. The remote control features excellent ergonomics − the buttons activate the most used functions, while rotating or pressing the encoder operates fine adjustment and menu navigation. The design, size and positioning of the buttons and encoder are customized for use with both bare hands and gloved hands. It takes minimum movement for a hunter to control the riflescope enabling them to maintain maximum concentration on the hunting process with the remote control placed in any convenient position on the fore-end or rifle butt.
Revolutionary HD, clear, thermal image
Thermion 2 LRF XL50 offers the highest level of thermal imaging. The image generated with the new 1024x768- pixel thermal sensor features high definition and rich detail ideal for uncompromised trophy identification. The silhouettes, anatomy & behavioural peculiarities of the animal are clearly visible and easily distinguished.
Unprecedented Thermal Sensor Sensitivity
Thermal imaging sensor with NETD <35mK ensures perfect detail recognition even in the hardest weather conditions when thermal contrast is low. The smallest temperature differences will be clearly visible during the rainfall, fog or cold mornings in the most difficult conditions for thermal imaging.
User mode
Use the brightness and contrast adjustments to maximise the detail and informative value of the image in specific observation conditions. The User Mode function saves selected brightness and contrast settings in the device's memory providing optimal image quality for the next use of the thermal imager immediately, with no additional adjustments needed.
Fast aperture F50/1.0
The characteristics of thermal imaging optics have a decisive influence on a thermal imager’s ability to capture even the lowest radiation levels. Ultimate detection efficiency is achieved with the fast lens of the Thermion 2 LRF (F50/1.0) thermal imager in combination with the highly sensitive thermal sensor. The Thermion 2 LRF gives users the best quality, most detailed & high-contrast, informative imagery every time, even during rain or fog, when the temperature contrast of the observed scene is minimal.
Long detection range up to 2300 m
A powerful long-distance F50/1.0 objective lens combined with a highly-sensitive thermal imaging sensors provides exceptional detection capabilities. A standard 1.8m tall object can be detected on a distances of 2300m away in complete darkness.

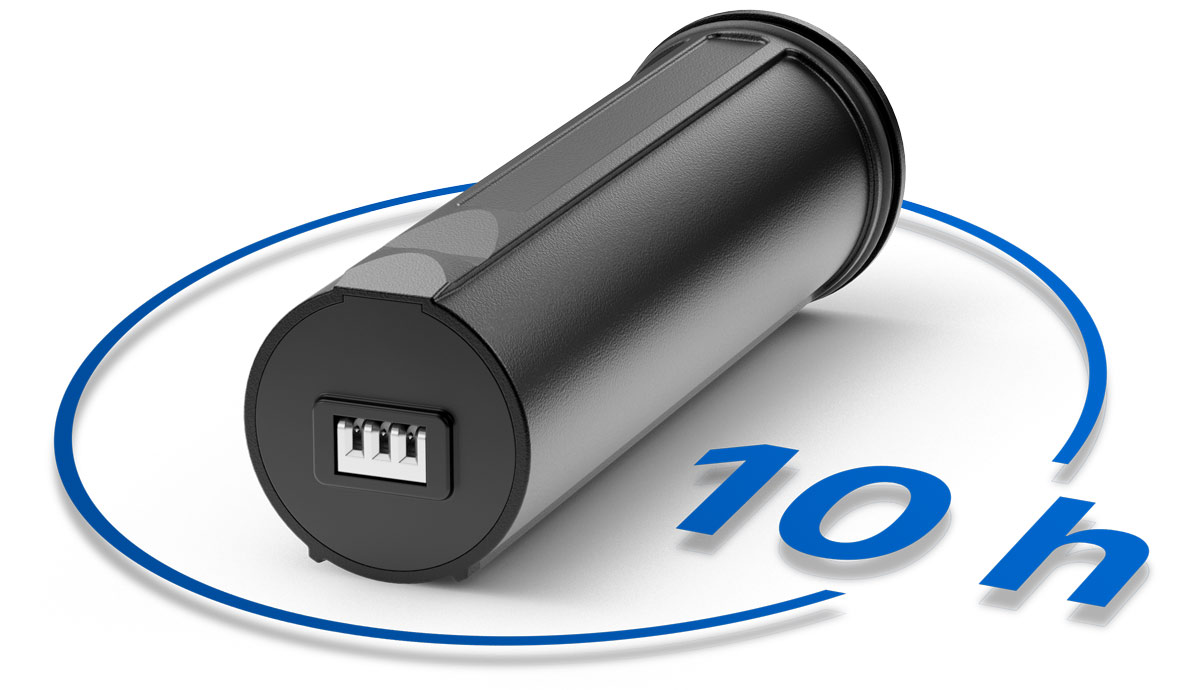

Up to 10 hours of battery life on a single charge
The Thermion 2 LRF is powered with two rechargeable batteries: one built-in with a capacity of 4.9 Ah, the other replaceable with a capacity of 2 Ah. A single charge guarantees up to 10 hours of battery life, which covers the time of active use of the scope for a hunt. The embossment on the body of the replaceable battery for accurate determination of the correct position makes it possible to quickly and confidently replace a flat battery with a new one in complete darkness by touch.
IPX7 Fully Waterproof
IPX7 waterproof-rated for protection from heavy rainfall, snow or other precipitation. The unit is designed to run flawlessly, even after submersion in up to 1 meter of water for up to 30 minutes.
Instant Start-up
Just 3 seconds from the moment you press the power button the Thermion 2 LRF is completely ready for work.
High-contrast HD AMOLED displays
The 1024x768 pixel resolution AMOLED display has improved colour rendering, is power saving, offers high contrast imagery and a quick-response, as well as providing clear & smooth images when observing on-the-move or in cold conditions.

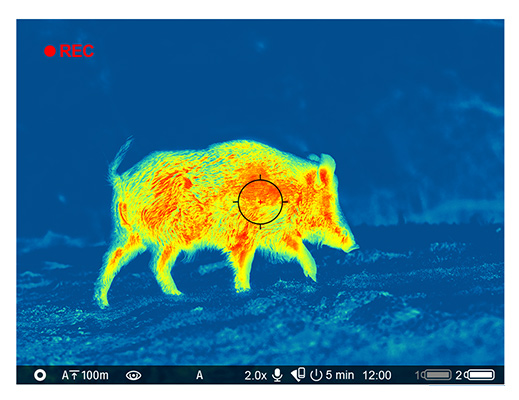

Photo and video recording
Keep the best moments of observation and share them with your friends and hunting colleagues. One touch of a button is enough to capture an interesting moment or start recording a video. 64 GB of internal memory will give the ability to record many hours of video and tens of thousands of photos.
Wide-angle eyepiece for comfortable observation
The wide-angle eyepiece (29.5°) and wide viewing angle of the HD quality AMOLED display provide comfortable image perception and the absence of the keyhole effect with safe removal of the exit pupil of 50mm. Observation with the Thermion 2 LRF does not strain your eyes and enables the hunter to fully concentrate on the hunting process.
A selection of 8 color palettes
A choice of 8 colour palettes lets the user observe their field of view more effectively, allowing them to optimise the unit for specific tasks as well as react to changing observation conditions. White Hot, Black Hot and Red Hot are optimal for object detection, Rainbow and Ultramarine help increase chances for recognition & identification. Red Monochrome, Sepia and Violet are most suitable for long observation in the night.
Stream Vision 2. WiFi integration with iOS and Android devices
The built-in WiFi module will connect the device with smartphones based on Android and iOS via the Stream Vision 2 mobile application. This combination provides a great opportunity, such as wireless update of the device software, transmission of images to the screen of a mobile device in real time, remote control of digital functions of the device and many others. Users registered in the application are provided with cloud storage space for photos and videos taken with a digital or thermal imaging device.
